Fein 18v Metal Circular Saw (Tool Only) (AmpShare)

• High performance – low weight: 50% more material is removed than with standard metal circular saws as the brushless motor, ProCORE battery and optimally coordinated saw blade interact perfectly. And the tool weighs just 3 kg.


• Housing and safety hood made from die-cast aluminium and swarf collecting vessel made from material with low flammability for maximum protection from hot metal chips with sharp edges. The user has an unobstructed view of the cutting line at all times thanks to the LED working lamp.


• Pipes, profiles, metal grilles and sheet metals with a cutting depth of up to 57 mm can be sawn rapidly and precisely. Guide rail adapter for straight, long cuts – compatible with guide rails from Makita, BOSCH, Festool, Mafell.


• Manual speed setting (6 levels) for optimum results with a whole host of materials and no rework.


• Cold cuts for cuts with virtually no sparks or burrs.


• The LED light is activated in advance by the release switch.


• Safety hood closes in < 0.3 s even after 50 000 cycles.


• Better handling – low weight, ergonomic handles including Softgrip for right- and left-handed users.


• Electronic user protection: Efficient brake (0.2 s), temperature-based shutdown to avoid permanent damage to tool and battery, restart protection, dead man’s switch.


• Large swarf collecting vessel made from material with low flammability for long intervals between emptying.


• Heat-resistant, scratch-resistant and impact-resistant housing made from die-cast aluminium.


• Compatible with all 18 V AMPShare ProCORE batteries and chargers for even more power and flexibility. Also suitable for 18 V Bosch Professional cordless devices.


• Maximum work progress with AMPShare 18V ProCORE batteries: COOLPACK 2.0 technology delivers a 135% longer battery life. State-of-the-art cell technology and intelligent battery management deliver 87% more power than with conventional batteries. “Electronic Cell Protection” (ECP) protects the battery from overload, overheating and total discharge.


• Ideally equipped for every form of use. Mobile working with the L-BOXX system.




Specification

Battery voltage 18 V
Battery compatibility Li-ion / ProCORE Li-ion
Battery interface 18 V
AMPShare Speed,
no load 1,300 - 2,800 rpm
Max. saw blade thickness 2 mm
Saw blade Ø 150 mm
Mounting hole Ø 20 mm
Width 179 mm Height 249 mm
Length 287 mm
Steel up to 400 N/mm² 24 mm
Non-ferrous metals up to 250 N/mm² 40 mm
Max. cutting depth 57 mm
Dimensions of base plate 256 x 131 mm
Weight without storage battery 3.05 kg

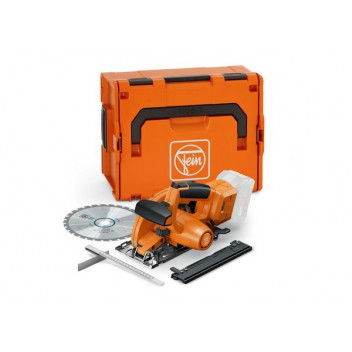

Standard Equipment

1 x circular saw blade for construction steel
1 x swarf collecting vessel, fitted
1 x socket head wrench 5 mm
1 x guide rail adapter
1 x parallel stop
1 x plastic tool case (L-BOXX 238)
